Building a Vintage Lithographed Station - Click for bigger photo.Return to Big Indoor Trains(tm) primer pageOn30 Display Trains
O Scale Accessories
O Gauge Christmas TrainsOn30 Christmas Trains

Written by Howard Lamey and Paul Race
for Big Indoor TrainsTM







































































Is it tin?  Or just a great tribute? Read on for more informationNote from Editor - Introducing Tribute to Tinplate: Florida hobby and craft designer Howard Lamey has created many projects reminiscent of the illuminated pasteboard houses that brightened many North American households during Christmas seasons between 1928 and 1965 (often called "putz" houses from the German word for "puttering around.") This project, however, is a first step in a new direction: It's a tribute to an even older tradition - the tinplate villages and trains that surrounded so many Christmas trees in the early 1900s. Big Indoor Trains is contributing some of our own lithograph-inspired downloadable graphics for projects in this series, so look out for some big, nostalgic fun.

Click to see the article about building this structure.Alert readers will note that this is not Howard's first tinplate-inspired building project - in 2008, he designed a Union Station project inspired by one of Lionel's most beloved tin stations.

Although one could build our "Tribute to Tinplate" structures from sheet tin, we are making them from cardboard. Ironically, this reflects yet another tradition - when tinplate trains and towns were in vogue, Japanese companies manufactured heavily-shellacked cardboard houses and stations that you could use to supplement your empire. Today putz house collectors call these old Lionel and Ives-inspired cardboard houses "Lackies," because of the lacquer that made them almost as shiny as the metal structures that inspired them.

If you're an O-gauge collector, you'll recognize a lot of influence from the American Flyer Hyde Park Station, a lithographed, stamped metal station made in the early 20th century. - Paul

Lewis Park Station

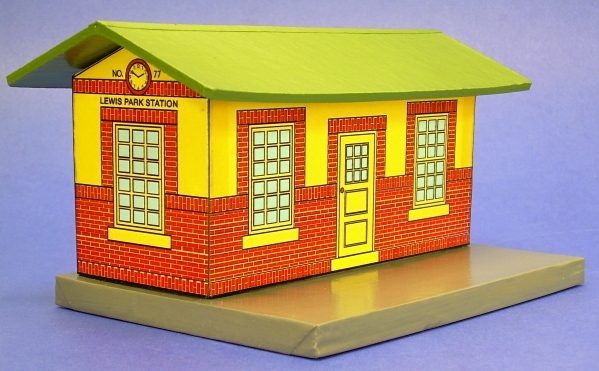

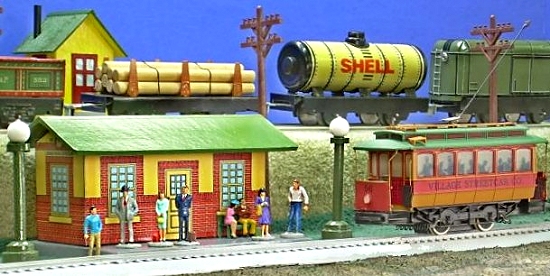

This is an easy project that was designed to look good with vintage trains. When Paul sent me the original graphic, he let me decide what size roof and platform to include, so I printed out a copy in black and white (saving my inkjet's cartridges) and made a mock-up before I began the final structure.

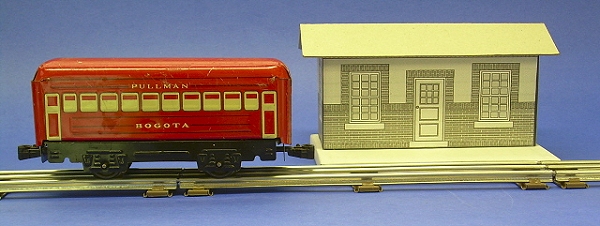

Because this doesn't require a lot of window-frame cutting, the mockup went together pretty fast. When I went back and did the "final structure," I was more careful, but it still went together faster than most of our cardboard house projects.

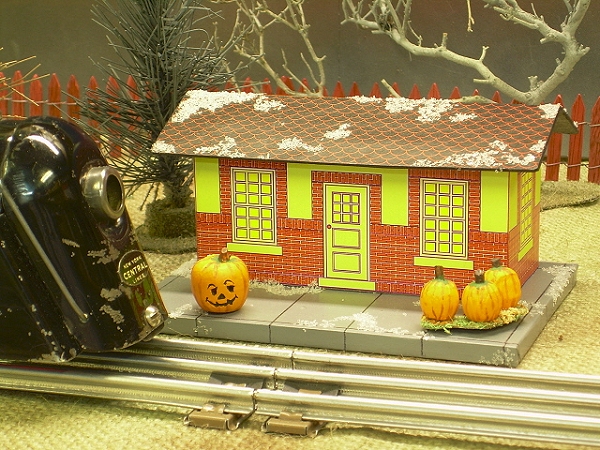

Click for bigger photo of the Halloween version.New, September, 2009 - S scale and Halloween Graphics! - Since Paul and I put this project together, I've decided that my Marx trains look better with a station that's a bit smaller than O scale. Plus, we're trying to get a head start on Halloween. So Paul has added graphics in S scale for the standard Lewis Park Station. He has also added graphics in O and S scale for a new Halloween version - which he labeled the Jeckyll Park Station. (You may remember that this structure is based on the American Flyer Hyde Park station, so this is Paul's little joke.)

What You Will Need

  • Clean solid cardboard, such as from cereal boxes or the backs of writing tablet. I doubled the thickness of the roof to get a more solid appearance, so you might keep that in mind.
  • Corrugated cardboard for the station platform and building foundation
  • A sharp mat knife or Xacto knife
  • Elmer's white Glue-All. A glue stick would also come in handy.
  • Several sheets of acid-free white bond paper
  • Acrylic paint for the roof and platform. Following the example of American Flyer's Hyde Park Station, I used dark green for the roof and dark gray for the station platform. If you wanted to use dark red for the roof, that would also provide a vintage look, since several similar structures had dark red roofs.
  • Access to the Internet and a color printer.
For a more comprehensive list of tools and supplies that come in handy on any cardboard house project, please refer to our article What You Need to Build Glitterhouses.

A Note about Scale

Many early O-gauge and O27 trains are more like toys than models, so the "scale" of the trains and accessories are all over the map. A few pieces even are closer to HO (1:87) in scale than they are to O (usually 1:48). On the other hand, some accessories made to go with O27 trains are half again as large as they should be, since they're holdovers from earlier Standard Gauge products. So if you want your tinplate-inspired projects to look right with your existing equipment, you probably want to do a "mockup" first, as I did. As you can see, the station looks a tad small next to a Lionel "Docksider"-style engine (which is a fairly small locomotive). However it looks plenty big next to the Marx passenger car I plan to use with it.

Click for bigger photo.Click for bigger photo.

This project's appearance is based on an existing American Flyer model that was made to go with Standard gauge trains, but its size has been adapted to look good with my Marx tinplate trains. The mockup verified that. On the other hand, if you want the station to look good with the bigger Lionel O gauge trains, you might want to bump up the size a little when you print. If you want to go "way up," start with the Standard Gauge plans and shrink them as you print. Or you may have the "chops" to manipulate the JPG version.

Print the Patterns

This project has a structure pattern that you will need to cut out and transfer to cardboard, as well as a station wall graphic sheet that you will use to finish your station's appearance. Graphic sheets are also available to go with:
  • O Scale trains or large O27 trains. The plans are printed in this scale, so if your mockup looks good with your trains, you can use the plans "as-is".
  • Standard or Large Scale trains. These graphics are about 1.6 times the size of the "O" version, so you'll have to adjust the measurements of the plans accordingly.
  • S Scale trains, Marx O gauge trains and holiday villages. These are about 75% the size of the "O" scale version so you'll have to adjust the measurements of the plans accordingly.

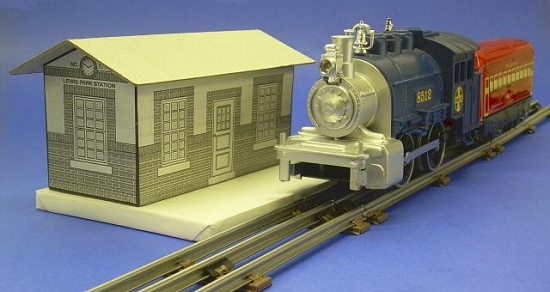

Again, doing a mock-up to make certain the finished structure will look right with your existing equipment is very important.

You may print the structure pattern on any sort of paper, since you're simply using this to transfer the plan to your cardboard medium. However the "lithograph" graphic should be printed on acid-free heavy paper or card stock.

Note about the Halloween Version - Because most people interested in the Jeckyll Park version of this project will be using it with a holiday village, we have provided only the O and S scale versions. (Please contact Paul if you need a different scale.) We have also provided a black and orange "fish-scale" roof pattern to add to the Halloween feel of the building. (There is not a roof graphic for the non-Halloween version because the original Hyde Park station had a solid painted deep green or deep red roof.)

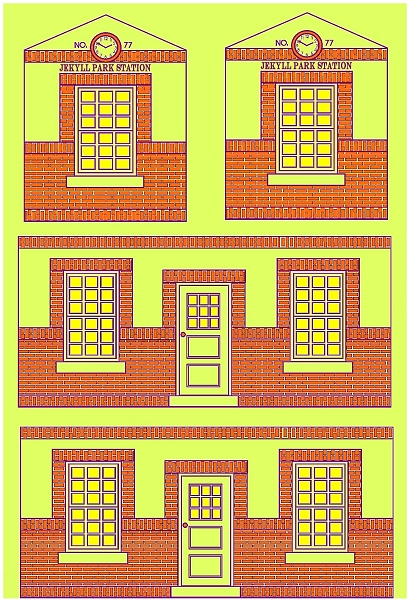

Double-click on this image to see a higher resolution pattern.Double-click on this image to see a higher resolution pattern.
Double-click on this image to see a higher resolution pattern.Double-click on this image to see a higher resolution pattern.
Select the scale of graphic you want from the list below.Select the scale of the graphic you need from the list below.

Printing the Plans - If you have Adobe Acrobat Reader on your computer:

  • Click here to open the pdf version of the first sheet. Select the print option, tell it to "auto rotate and center" or whatever else you need to make it go to Landscape mode. Don't select the "scale to page" or "shrink to fit" option. Print.
  • Click here to open the pdf version of the second sheet. Print as you did the first sheet.
  • Click here to open the pdf version of the third sheet. Print as you did the first sheet.

Note: If you are going to produce this building in Large Scale or S Scale, use these plans as guidelines for how the building goes together, but take your dimensions for the building walls and ends from the graphic (less 2x the width of the cardboard you are using).

Printing the Graphics - We've provided several versions to help you print the plans at the size you need.

  • We've provided the non-Halloween "lithograph" pattern for use with three different scales.

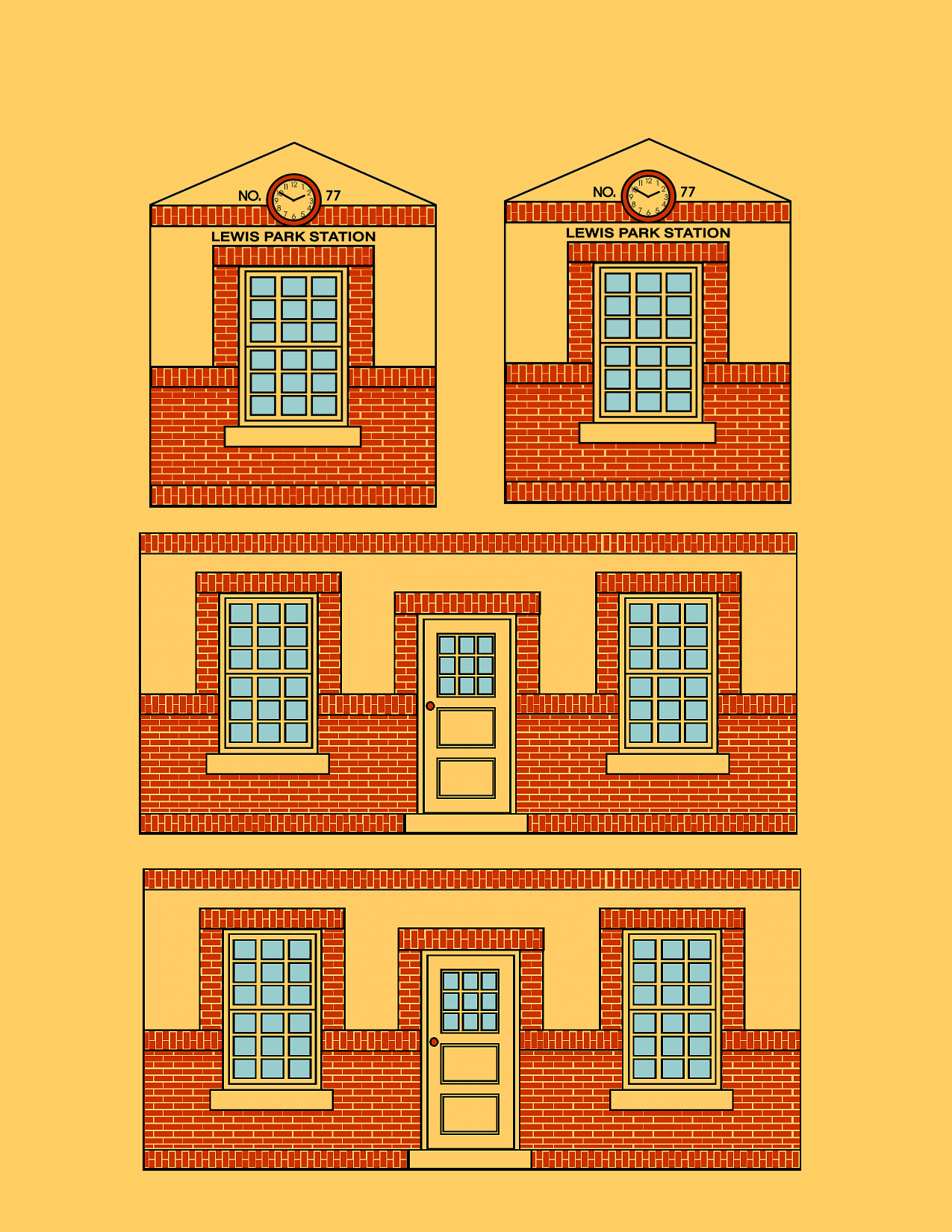

    • For use with O scale or large O27 trains, click here to open the pdf version of the O Scale graphic. This sheet should be printed on acid-free high-grade paper or card stock. Note: Consider printing this sheet in black and white first to double-check the size against your existing equipment.
    • For S Scale, holiday villages, or Marx tinplate trains, click here to open the pdf version of the S Scale graphic. This sheet should be printed on acid-free high-grade paper or card stock. Note: Consider printing this sheet in black and white first to double-check the size against your existing equipment.
    • For use with Standard Gauge/Large Scale trains, print two of each of the following sheets.

    Note: If after you've done the mockup, you decide you need the patterns and graphic sheet to be a different size, simply adjust the % value up or down in the print setup screen the next time you print them.

Printing the Halloween Graphics - We've provided several versions to help you print the plans at the size you need.

If you don't have Adobe Acrobat Reader on your computer or for some reason that doesn't work, contact Paul and ask him for help - that's his department. :-) A note about Copyright - However you use these plans and graphics for your personal use, please keep in mind that the lithograph graphic is copyright 2009 by Paul Race and is not to be copied, re-used, republished, or repurposed without prior permission and appropriate credit. Commercial use without prior permission is illegal and expressly forbidden.
Big Indoor Trains(tm) is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com. Paul likes making resources like this available to hobbyists, but they are expensive and time-consuming to produce and publish, and it's frustrating to see other folks profiteering off his hard work. In other words, if you like having this kind of resource available and you'd like to see more, please respect the creator's rights.

Building the Station Backing

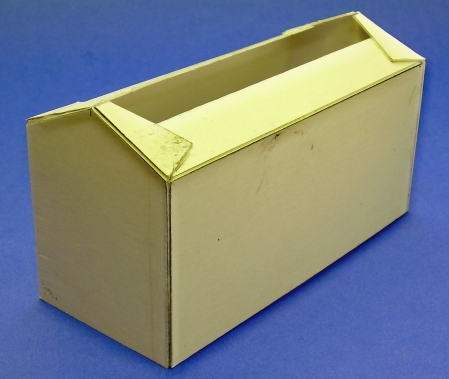

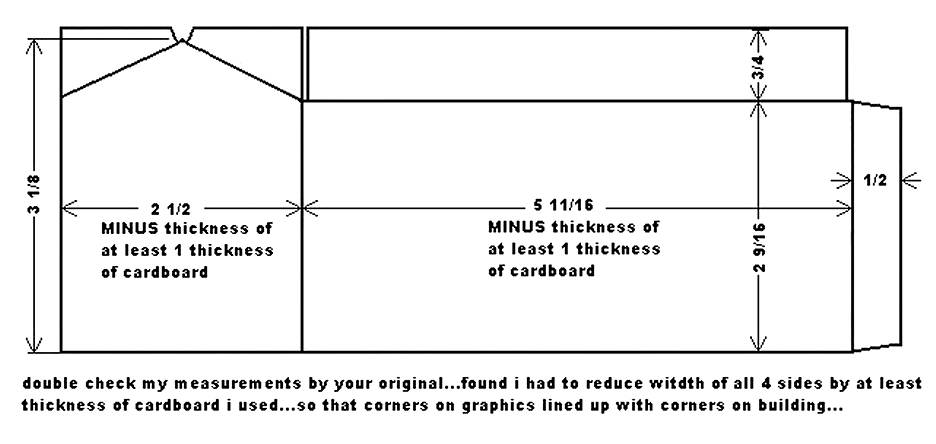

I cut out the backing pieces for the side and end walls before I mounted the graphics to them. Note that you should adjust the lateral measurements of the backing pieces so that they are slightly less than the size of the lithograph sheet. (If a backing piece is a tiny bit narrower than it should be, you can nip an extra bit off of the lithograph sheet to make it fit, and camouflage the cut with a fine-tip marker. If a backing piece is a tiny bit wider than it should be, it's pretty hard to stretch the graphic paper to cover it.)

I scored the folds and glued the walls together in a rectangle. Then I cut out a piece of scrap cardboard to test the size of the roof.

Click for bigger photo.Note: Construction of the base is actually described in the next paragraph.  Click for bigger photo.

Building the Base

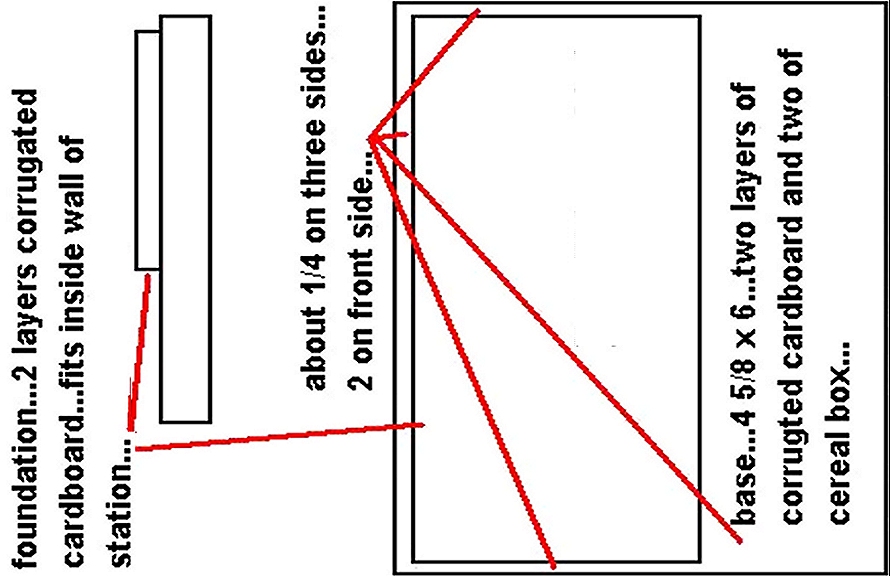

The base is a rectangular "box" built up from corrugated cardboard. It should be about 6" x 4 5/8" x 1/2" if you want to retain the relative proportions of the original structure. [Editor's note: I'd probably go a little more realistic here, and have an extra couple of inches in both directions so the little people and their imaginary baggage carts can walk or roll around all four walls of the station. But that's not the way the original tinplate building was made - Paul]

  1. Make the base from three or four layers of corrugated cardboard glued together in a sandwich.

  2. Wrap and glue a strip of cereal-box cardboard all around it to camouflage the rough edges of the corrugated cardboard.

  3. When the base is built, cover it with white bond paper just like you would wrap a gift, except that all surfaces of the paper cover must be glued down to the box. A glue stick works great for this.

    Note: For more information about building bases for vintage-style cardboard houses, please see our Glitterhouse Bases article.

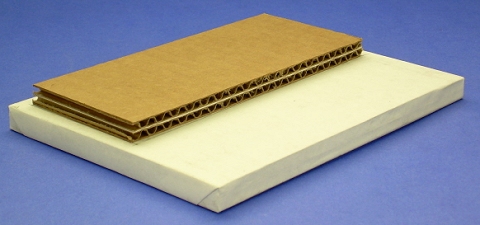

Click for bigger photo.After you have built the base, cut the foundation piece out of corrugated cardboard and set it loosely on the base. Position your station over it (as shown above) to make certain it is a secure, but not overly tight fit.

Painting the Base

Once you're certain of the fit, prime the base and paint it with several coats of glossy paint in the color of your choice. Industrial gray was the color most often chosen for this kind of structure in the tinplate days.

Building the Roof

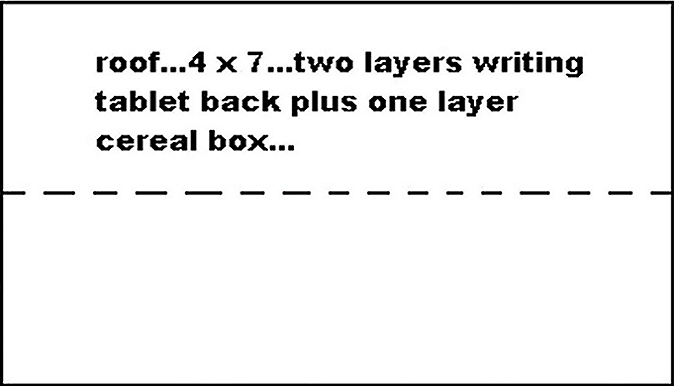

Once you are satisfied with the dimensions of the roof, build it up from layers. I used two layers of thick cardboard from the back of writing tablets, then the top surface was cereal box cardboard, chosen because it is relatively smooth and takes a crease nicely.

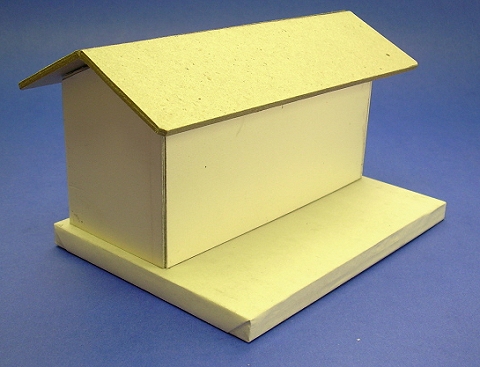

Make certain that as the glue dries, the roof stays bent at the correct angle to fit over the structure properly.

There is no printing on the original, so I finished the roof by priming, then painting it with several colors of glossy deep green paint.

Apply the Graphics

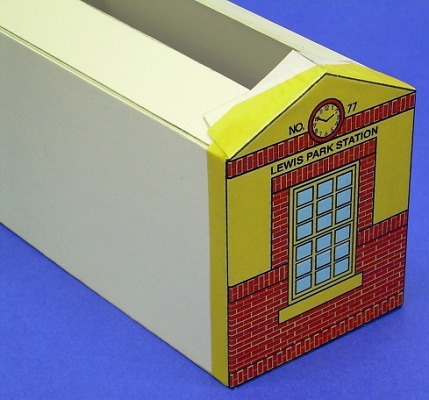

  1. Apply the printed graphics. Only do a section at a time. Measure carefully, make crisp folds, apply glue and press in place.

  2. Trim the edges of the graphic paper, if necessary. The easy part of building this structure is that you don't have to do anything with the window and door frames. The hard part is getting the corners to line up exactly.

  3. After the graphic sheets have dried in place, you will see white edges at the corner. With a black felt-tip pen, marker, or acrylic paint and a very tiny brush, carefully coat just the edge of the paper or card stock, trying not to make the printed lines any wider than they already are.
Click for bigger photo.Click for bigger photo.

Finish

Click for bigger photo.Wait until the glued-on graphics are thoroughly dry, then spray the station body with spray it with several light coats of a clear glossy indoor/outdoor acrylic finish. This protects it somewhat from moisture and dust and also helps reduce fading. In addition, it makes thelithography pattern "pop." Do not such a heavy coat in one pass that you cause any streaks, runs, or drips, though, or you'll have to start over.

When that is dry, glue the whole building together. I would add another coating or two of acrylic spray for good measure. However it won't soak in anywhere on the structure by now, so be careful to keep your coats light.

Click for bigger photo.Of course the station will really come to life when you add figures, accessories, and trains. The photo to the right shows a Bachmann-manufactured On30 streetcar at the platform level, and several Marx-style O27 pieces on the raised track. This station would serve any O gauge/O27 Lionel or On30 Hawthorne Village train equally well. (For American Flyer S gauge consider reducing the size by to about 75%, but you'll want to try a mockup first to be sure anyway.)

Conclusion

If you like this project, stay in touch - more are on the way. In the meantime, you might like to take a look at the following projects.
