Building a Tinplate-Inspired Goose-Neck Lamp Post.  This simple project will inexpensively provide 'vintage' detail to your railroad or display village.Visit Big Indoor Trains™ primer pageOn30 Display Trains
O Scale Accessories
O Gauge Christmas TrainsOn30 Christmas Trains

Written by Paul D. Race for Big Indoor Trains™
Click to see new and reissued Lionel trains











































































































Note from Editor: Since Howard and I have been putting together the Tribute to Tinplate(tm) series, we have realized that authentic-looking period accessories help "cinch" the overall look of the tinplate era. This "goose-neck lamp post" doesn't actually light but, like the straignt-up-and-down lamp posts Howard developed to go wtih the "Lewis Park" tinplate station project, it brings back a whole era. And like most of our other Big Indoor Trains(tm) projects, it costs almost nothing to put together.

Building a Tinplate-Inspired Goose-Neck Lamp Post

After I made some of the little straight-up-and-down lamp-posts to go with the Click to go to the Lewis Park Station article."Lewis Park" tinplate station project, I thought about modeling another popular lamp-post from the tinplate era. I retained the "given" that the lamp post wouldn't actually light, which freed me to cast about for free or very cheap materials. One day I realized that those cheap plastic hangars have two very suitable curves for such a project. Again, once I had done one, I couldn't help but put together a whole street's worth of them.

Materials Needed:

The following list contains suggestions only - you may have something onhand already that suits your purposes better.
  • Click for bigger photo.A cheap plastic coat-hanger, the kind you get ten for a dollar at the "Dollar Store." In the photo to the right, you can see that I have already "sliced and diced it."
  • A white glue
  • Black acrylic paint
  • A craft brush
  • A flanged nut just big enough to fit over the hanger material. I used a 3/8" nut with a "built-in-washer."
  • Something for the "fat" part of the stand. For my "O-gauge tinplate" version I used a broom-stick handle that I sliced into short lengths. Or you could use the "plug" from a hole saw, with a little sanding.
  • A can of glossy clear acrylic finish (indoor-outdoor is best)
  • A plastic white or "pearl" bead from toy jewelry
  • One straight pin
  • For the "flange" base, I built up a couple of layers of thick, noncorrugated cardboard like you get from the back of a writing tablet. A small square or circle of Masonite-type material or thin plywood would work as well.
Chances are you have most, but not all of the things you need right now - if you take a little time to think, you can probably scrounge something that will replace the other supplies without leaving the house.

Click to download the plan.Downloading the Plan

The plan for this task is really just to show you one way to put the pieces together. How your final project looks, or what size it is really depends on what materials you wind up using, and your personal preferences. But if you want to download the plan to get one example, simply click on the graphic to the right.

Assembling the Lamp Post

The steps you take in final assembly of the base will depend on what materials you selected.

  1. Predrill the base. Drill a hole in the "fat part" of the base that is just big enough to accept the hanger material.

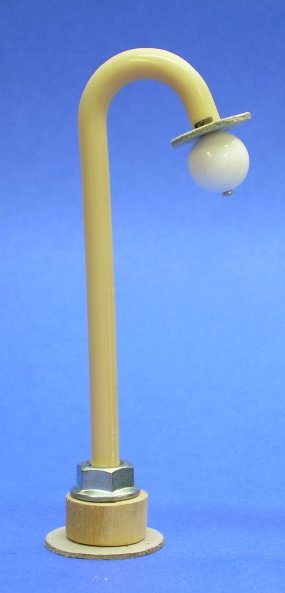

  2. Click for bigger photo.Predrill the post tip. Although some of these hangers actually have a hollow place or "air bubble" at the center, you will probably need to pre-drill a hole in the curved end of the hanger piece for the straight pin to go into. It's possible to do that a speed drill and the smallest diameter nail you can find. Try not to drill so deep or wide that the straight pin wobbles when you insert it, though.
  3. Glue the post together, except for the bead. Keep an eye on it while it's drying to make sure nothing slips out of place.
  4. When that glue is very dry (overnight is best) paint the post all over. Black or dark green are the most typical colors for this sort of lamp. Lionel sometimes used silver as well.

    When paint is dry, give the lamp post several light coats of the clear, glossy acrylic finish. Give time between coats to dry to touch, so you don't get drips or streaks.

  5. Stick the bead and straight pin on and glue in place.

Conclusion

Click for bigger photo.Of course once you make one of these and set it on your railroad, you might feel the need to make another five or six. We are definitely interested in seeing how these projects look on your railroad or display village. Please contact us for information about how to send digital photos.

This is a detail from a larger photo. Click here to see more of the original photo.

Also, if you have a project idea that you would like us to consider, please use let us know.

Finally, now that I'm in "retirement," this hobby has become a sort of avocation for me. Several folks have commissioned me to build specific structures or other projects for them. So if you'd like me to bid on a project house for you, or if you have any questions at all, please use the e-mail address on my order page to contact me directly.
