Written by Paul D. Race for Big Indoor TrainsTM

Scales and Gauges - They're Not the Same

A "scale" refers to the relationship between a model and the real thing. As an example, an HO scale model of a 40' box car is 1/87th the size of the real thing, about 5.5" long. Modelers call that relationship 1:87. An O scale model of a 40' box car should be about 1/48 the size of the real thing, or 1:48 (about 10" long). So, the smaller the number in the denominator, the larger the model. (1:32 is bigger than 1:48, which is bigger than 1:64, which is bigger than 1:87, which is bigger than 1:160 and so on). The following table shows some of the most common scales used by "serious" model railroaders.

Scale NameScale
N1:160 (mostly)
HO1:87
S1:64
01:48 (mostly)
Large Scale1:20.3 to 1:32 (mostly)

What is a Gauge?

The word "gauge" refers to the width between the rails on a railroad. Most HO scale trains model real-world trains that run (or ran) on rails that are 56.5" apart. In the real world, they call this "standard gauge." So the rails on HO gauge track are about .65" apart (divide 56.5 by 87) (actually they're 16.5 mm apart, the metric equivalent). Because so many people model HO standard gauge, many train lovers get used to using the terms "scale" and "gauge" interchangeably. To such folks, "I have an HO scale railroad," and "I have an HO gauge railroad," mean the same thing.

However, it's not accurate to use the words "scale" and "gauge" interchangeably, even in HO, and it can cause problems if you use the terms interchangeably in larger scales. There are three reasons for making the distinction between scale and gauge, especially if you're using trains that are bigger than HO.

  1. Some trains model real-world trains that ran on smaller tracks. For example in North America, many trains ran on rails that were 36" apart or even closer. We call such smaller width track "narrow gauge," as opposed to "standard gauge" (56.5"). So if you're modeling one of those trains in HO scale, you will be using track that's only 4/10" apart (or 10.5mm). You would say you were modeling in HOn3 (HO scale [1:87], narrow gauge, 3 feet). Some folks say they are modeling in HOn36. The breakdown is:
    • HO = HO scale (1:87)
    • n = Narrow gauge (NOT 56.5" tracks)
    • 36 = 36" distance between the rails on the prototype (original)

    HOn3 modelers can use the same people and buildings that "HO gaugers" use. But they can't use the same trains because the wheels of an HO gauge train are too far apart. Can you put HOn3 and HO gauge trains on the same railroad? Yes, many people have. But you will have two different track systems to run on.

    There is a similar difference between the ever-popular O gauge (which runs on 1.25" track, often with three rails) and the new, but growing On30 trains. In this case the breakdown is:

    • O = O scale (1:48)
    • n = Narrow gauge (NOT 56.5" tracks)
    • 30 = 30" distance between the rails on the prototype (original)

    On30 trains technically should run on track that is .625 inches apart. But since HO track is widely available and "pretty close," manufacturers like Bachmann use that track width instead. That explains why advertisements often promote "O scale trains on HO track."

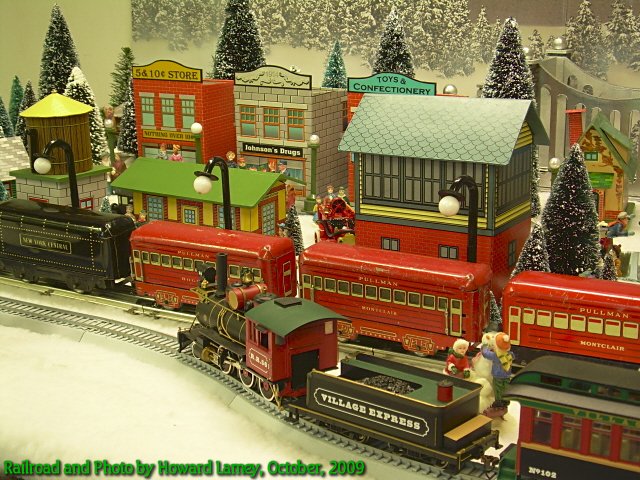

    The title photo shows an On30 train manufactured by Bachmann for Dept. 52 between 1999 and 2008 "chasing" an antique O gauge Marx train. They look better together than you might think they would, but they certainly won't run on the same gauge of track.

  2. Some trains have been scaled down to fit in people's houses. This is especially true of O gauge trains, most of which are smaller (in some cases much smaller) than they would be if they were actually O scale. That's why I call Lionel train sets "O gauge" instead of "O scale." They run on track that's about 1/48 the size of the real thing. But many O gauge cars and locomotives are only about 3/4 as long as they should be. Height and width is also reduced, but not usually as much.

  3. Large Scale Model Trains include several scales of trains running on the same track. In fact our Family Garden TrainsTM site has a whole article on the subject. On the other hand, most Large Scale train sets play fairly well together, and they all run on the same track. So if you're doing a railroad or Christmas display just for fun, you probably don't need to lose serious sleep over this issue.

Supported Scale and Gauge Combinations of Big Indoor Trains

As you can see, there could theoretically be about 256 combinations of scale and gauge to worry about, if you count all the possible combinations. But when you actually try to buy a train set, you'll realize that you have only a few real choices. Fortunately, those choices are great!

Kind of Train Set
(with links to buyers' guides)
NotesGood for: (in my opinion)
Per-manent
Big Indoor
Rail-roads
Tabletop
Christ-mas
Trees
Floor-
mounted
Christ-mas
Trees
Christ-mas
Vil-lages
Public Dis-playsPer-manent
Out-door
Rail-roads

Lionel O Gauge Train Sets

Click to see available Lionel Train Sets
Click to see available Lionel Train Sets in Christmas colors

Sturdy, well-known, appeal to nostalgia. These run on O scale track, but they are almost all smaller than true "O" scale. On the box they sometimes write "O-27", but that refers to the kind of track they run on, not the scale of the trains.
*******************

Bachmann On30 Train Sets


Bachmann On30 Train Sets
Bachmann On30 Christmas Trains
Well-supported, well-detailed and painted. These became popular since Bachmann trains built a set to go with the Dept. 56 Village structures in 1999. They are models of very small real-world trains that ran on 30" track. Today most On30 trains run on HO gauge track, because it's pretty close to what it "should be," and there are many kinds available. Include a mechanical lifetime warranty by Bachmann. ******************

Hawthorne Village On30 Train Collections



These are the "collector's versions" of the Bachmann On30 train sets. They aren't sets, per se, because you order and pay for them a piece at a time. Although they each have museum-quality hand-painting and detailing, they are mechanically interchangeable with Bachmann On30 trains, and have a lifetime mechanical warranty from Bachmann. Available in many themes, they are incredibly popular around Christmas. ******************

Large Scale Train Sets

Large Scale Starter Sets: Begin with a train you'll be proud to run
Large Scale Christmas Trains
Very large, well-supported, well-detailed and painted. These are designed to run outdoors, but they're popular indoors at the holidays, especially around large Christmas trees. If you're setting up a garden railroad or a Christmas display in a big bank lobby or outside, this is the place to start. ** ***** ***** *****

Other Possibilities

In case you already have a train set you're thinking about using, we've added the following list of things people frequently find in the attic and contact us about. We don't have any buyer's guide for these, though.

Kind of Train Set
(with links to buyers' guides)
NotesGood for: (in my opinion)
Per-manent
Big Indoor
Rail-roads
Tabletop
Christ-mas
Trees
Floor-
mounted
Christ-mas
Trees
Christ-mas
Vil-lages
Public Dis-playsPer-manent
Out-door
Rail-roads

Collectible O Gauge Tinplate Trains

If you have an old O gauge set in the attic that runs, it may also work well visually with a Halloween village. My friend and co-conspirator Howard Lamey uses an ancient Marx set with his seasonal villages, with great effect. Of course you can't order these new, but stores like Trainz.com often have a few pieces to sell.
*******************

American
Flyer
S Gauge
American Flyer S gauge trains are a good size match to most holiday villages. Most of them are collector's items today, so you don't necessarily want to start collecting them just for a holiday village. But if you already have a set in your attic, it will work great, except for one thing - American Flyer track circles are wide, requiring a 48" table. They did make a kind of track called Pikemaster which fits into tighter places, though. ******************

HO Trains
HO trains are not tall enough to look right with most seasonal village collections, and they are too small and (relatively) fragile to work under Christmas trees very well. However, if you have a set you want to try, go for it, it might work for you. ******************
